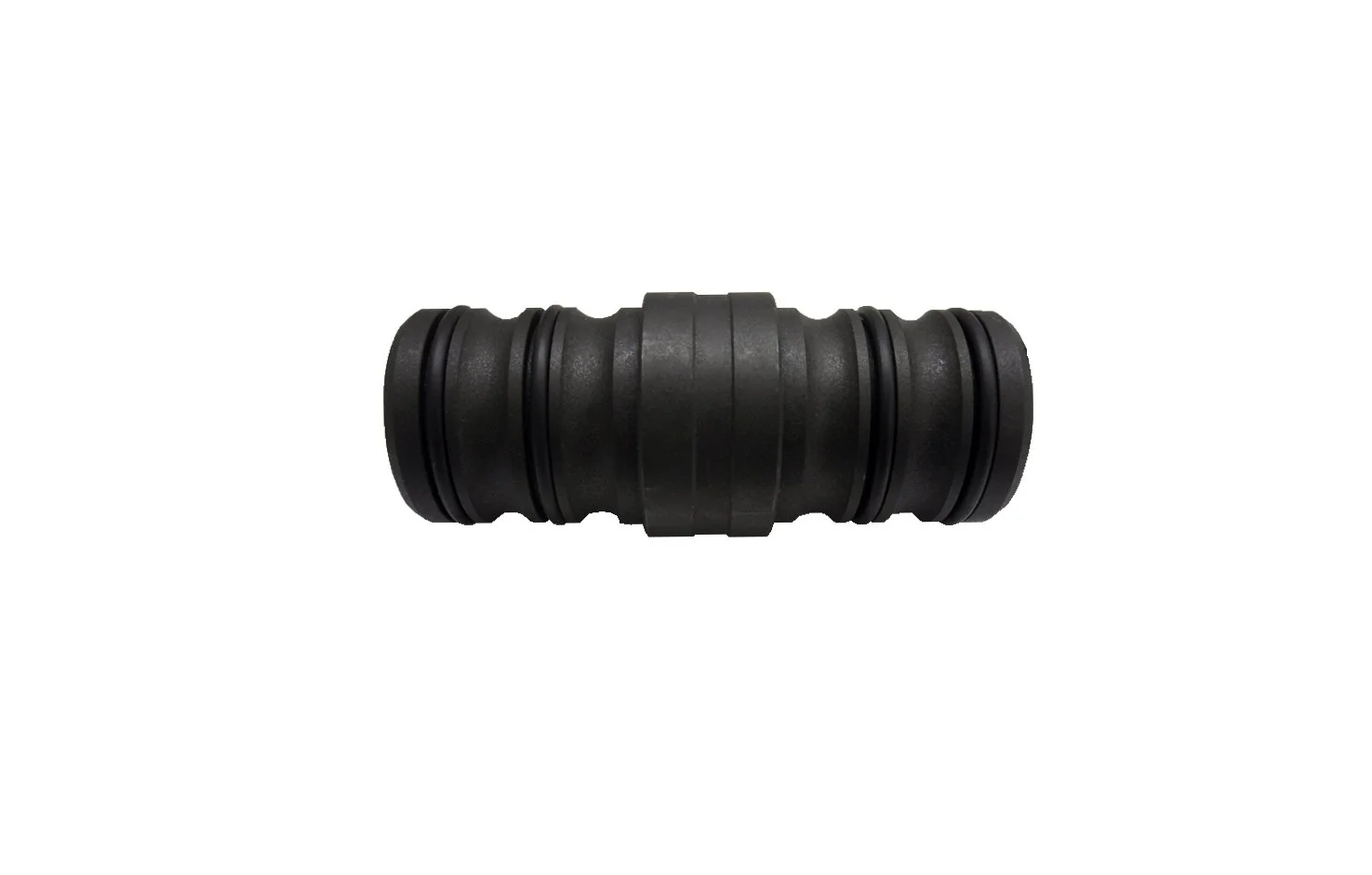

Roll On Connectors

$0.00

Key Edge Ltd. Roll On Connectors are designed to be crimped onto the coiled tubing to connect the tubing to the tool string, or to connect two lengths of tubing together.

Our Roll On Connectors are easily installed onto the open end of the coiled tubing using the Key Edge Roll On Crimping Tool.

Quantity:
Add To Cart

Key Edge Ltd. Roll On Connectors are designed to be crimped onto the coiled tubing to connect the tubing to the tool string, or to connect two lengths of tubing together.

Our Roll On Connectors are easily installed onto the open end of the coiled tubing using the Key Edge Roll On Crimping Tool.

Key Edge Ltd. Roll On Connectors are designed to be crimped onto the coiled tubing to connect the tubing to the tool string, or to connect two lengths of tubing together.

Our Roll On Connectors are easily installed onto the open end of the coiled tubing using the Key Edge Roll On Crimping Tool.

Tool Specifications

Standard Tool Sizes

TOOL O.D.

TOOL I.D.

MAKEUP LENGTH

TOOL JOINT

WALL THICKNESS

UPSET O.D.

PRODUCT NUMBER

1 1/4”

0.438”

4.85”

7/8” AMMT

0.095”

N/A

KEP1J01H-125-D03

1 1/4”

0.438”

4.85”

7/8” AMMT

0.102”

N/A

KEP1J01H-125-D04

1 1/4”

0.438”

4.85”

7/8” AMMT

0.109”

N/A

KEP1J01H-125-D05

1 1/4”

0.438”

4.75”

N/A

0.095”

N/A

KEP1J01H-125-D05-TT

1 1/4”

0.438”

4.75”

N/A

0.102”

N/A

KEP1J01H-125-D07-TT

1 1/4”

0.438”

4.75”

N/A

0.109”

N/A

KEP1J01H-125-D10-TT

1 1/2”

0.563”

5.10”

7/8” AMMT

0.102”

N/A

KEP1J01H-150-D04

1 1/2”

0.563”

5.10”

7/8” AMMT

0.109”

N/A

KEP1J01H-150-D03

1 1/2”

0.563”

5.10”

1” AMMT

0.095”

N/A

KEP1J01H-150-D40

1 1/2”

0.563”

5.10”

1” AMMT

0.102”

N/A

KEP1J01H-150-D12

1 1/2”

0.563”

5.10”

1” AMMT

0.109”

N/A

KEP1J01H-150-D42

1 1/2”

0.563”

5.10”

1” AMMT

0.125”

N/A

KEP1J01H-150-D15

1 1/2”

0.750”

6.22”

1 1/2” AMMT

0.109”

2.125”

KEP1J01H-150-D32

1 1/2”

0.563”

4.75”

N/A

0.095”

N/A

KEP1J01H-150-D01-TT

1 1/2”

0.563”

4.75”

N/A

0.109”

N/A

KEP1J01H-150-D05-TT

1 1/2”

0.563”

4.75”

N/A

0.116”

N/A

KEP1J01H-150-D07-TT

1 1/2”

0.563”

4.75”

N/A

0.125”

N/A

KEP1J01H-150-D10-TT

1 3/4”

0.688”

5.35”

1” AMMT

0.109”

N/A

KEP1J01H-175-D01

1 3/4”

0.688”

5.30”

1” AMMT

0.116”

N/A

KEP1J01H-175-D02

1 3/4”

0.688”

5.30”

1” AMMT

0.125”

N/A

KEP1J01H-175-D03

1 3/4”

0.688”

5.35”

1” AMMT

0.134”

N/A

KEP1J01H-175-D04

1 3/4”

0.891”

4.75”

N/A

0.125”

N/A

KEP1J01H-175-D05-TT

1 3/4”

0.891”

4.75”

N/A

0.134”

N/A

KEP1J01H-175-D07-TT

2”

0.891”

5.40”

1 1/2’ AMMT

0.109”

N/A

KEP1J01H-200-D01

2”

0.891”

5.40”

1 1/2” AMMT

0.125”

N/A

KEP1J01H-200-D03

2”

0.891”

5.40”

1 1/2” AMMT

0.134”

N/A

KEP1J01H-200-D04

2”

0.891”

5.40”

1 1/2” AMMT

0.145”

N/A

KEP1J01H-200-D05

2”

0.891”

5.40”

1 1/2” AMMT

0.156”

N/A

KEP1J01H-200-D06

2”

0.891”

5.40”

1 1/2” AMMT

0.175”

N/A

KEP1J01H-200-D07

2”

0.891”

5.40”

1 1/2” AMMT

0.190”

N/A

KEP1J01H-200-D08

2”

0.891”

5.40”

1 1/2” AMMT

0.204”

N/A

KEP1J01H-200-D09

2”

0.891”

3.60”

1 1/2” AMMT

0.175”

2.125”

KEP1J01H-200-D25

2”

0.891”

4.75”

N/A

0.109”

N/A

KEP1J01H-200-D01-TT

2”

0.891”

4.75”

N/A

0.125”

N/A

KEP1J01H-200-D05-TT

2”

0.891”

4.75”

N/A

0.134”

N/A

KEP1J01H-200-D07-TT

2”

0.891”

4.75”

N/A

0.145”

N/A

KEP1J01H-200-D10-TT

2”

0.891”

4.75”

N/A

0.156”

N/A

KEP1J01H-200-D12-TT

2 3/8”

1.063”

5.40”

1 1/2” AMMT

0.125”

N/A

KEP1J01H-238-D01

2 3/8”

1.063”

5.40”

1 1/2” AMMT

0.134”

N/A

KEP1J01H-238-D02

2 3/8”

1.063”

5.40”

1 1/2” AMMT

0.145”

N/A

KEP1J01H-238-D03

2 3/8”

1.063”

5.40”

1 1/2” AMMT

0.156”

N/A

KEP1J01H-238-D04

2 7/8”

1.375”

5.85”

2 3/8” PAC

0.190”

N/A

KEP1J01H-288-D01



Features:

  • High tensile strength

  • O-ring seal

  • Easy installation

  • H2S compliant

  • Machined torque stops

  • Full bore size provides ball-drop capacity

  • Customizable connection options

  • Available for all Coiled Tubing sizes/wall thicknesses

  • Corrosion resistant material

Applications:

  • For use in standard coiled tubing interventions

  • Multiple connection options for any operational requirements

  • Typically used in cleanout tool strings on pickling jobs
